Canister vacuum evaporated
Canister vacuum evaporated


  Main purpose:
  Mainly used in pharmaceutical, food, chemical and other industrial sectors concentrate on the liquid material. And can also recovering alcoholic and simple reflux extraction.
  Structure:
  The concentration tank equipment including a first condenser, a vapor-liquid separator, a second condenser, a cooler, a liquid barrel six components, there are all made ​​of stainless steel. Concentrated cans jacket structure, the column tube condenser, cooler snake tube.

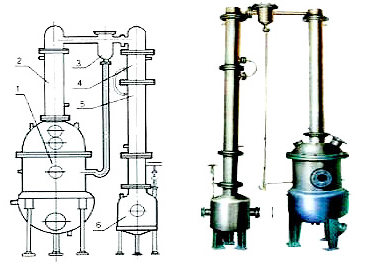

A schematic diagram of the major components
  A concentrate tank 2, a first condenser 3, the gas-liquid separator 4, the second condenser 5, a cooler 6, by the tank
The main technical parameters
50100200300500700
Steam pressure Mpa≤0.15≤0.15≤0.15≤0.15≤0.15≤0.15
Vacuum degree mmHg≤700≤700≤640≤640≤600≤600
Heating area M20.40.590.81.11.451.8
Condensing area M21.21.72.453.03.23.6
Cooling area M20.250.350.40.60.70.85
Heated tank volume L15456076100125
Net weightkg~350~450~550~650~800~1000
Dimensions L × W × Hmm1200×600
×2200
1350×750
×2200
1700×800
×2700
1700×1000
×3400
2100×1200
×3400
2400×1300
×3400
